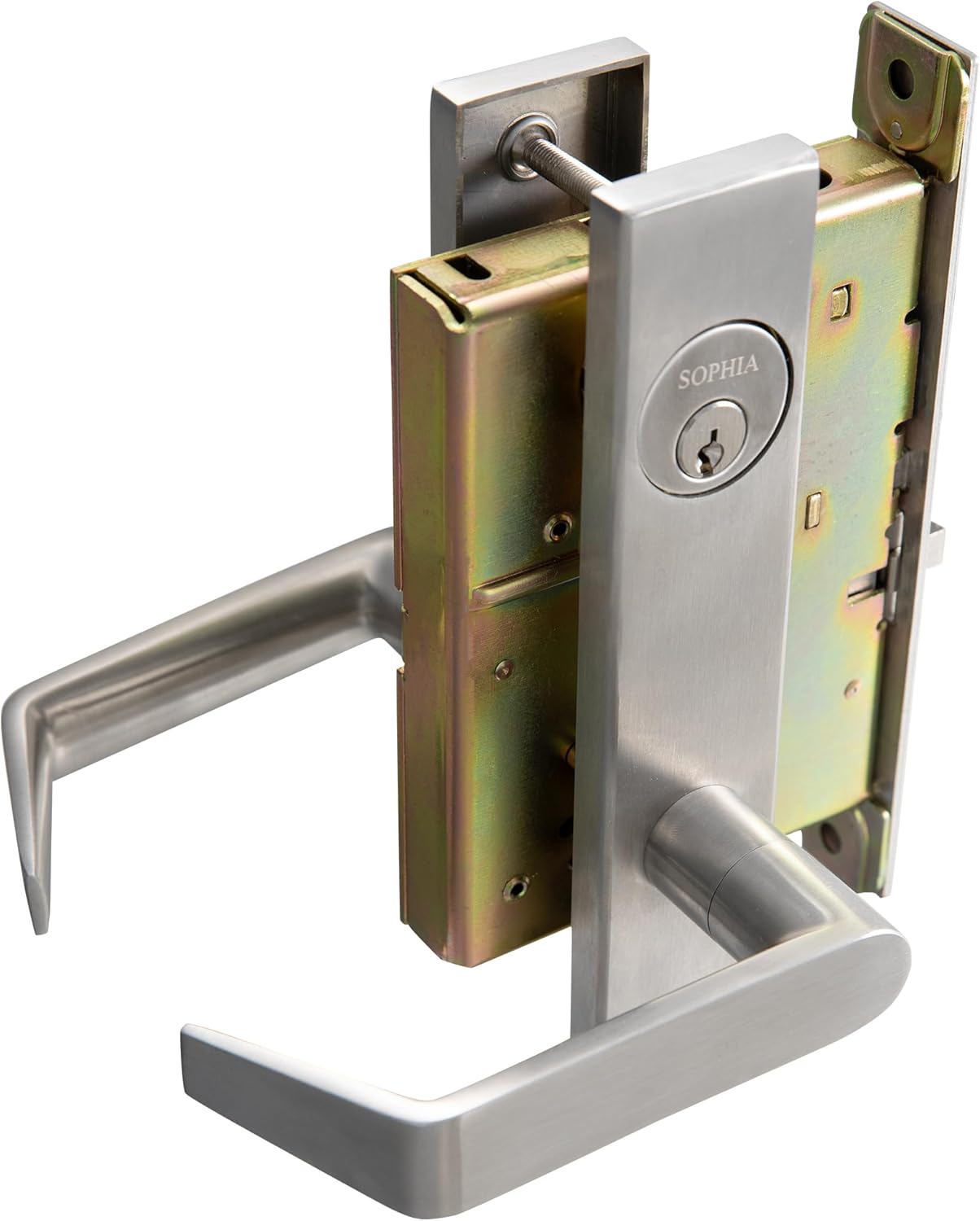

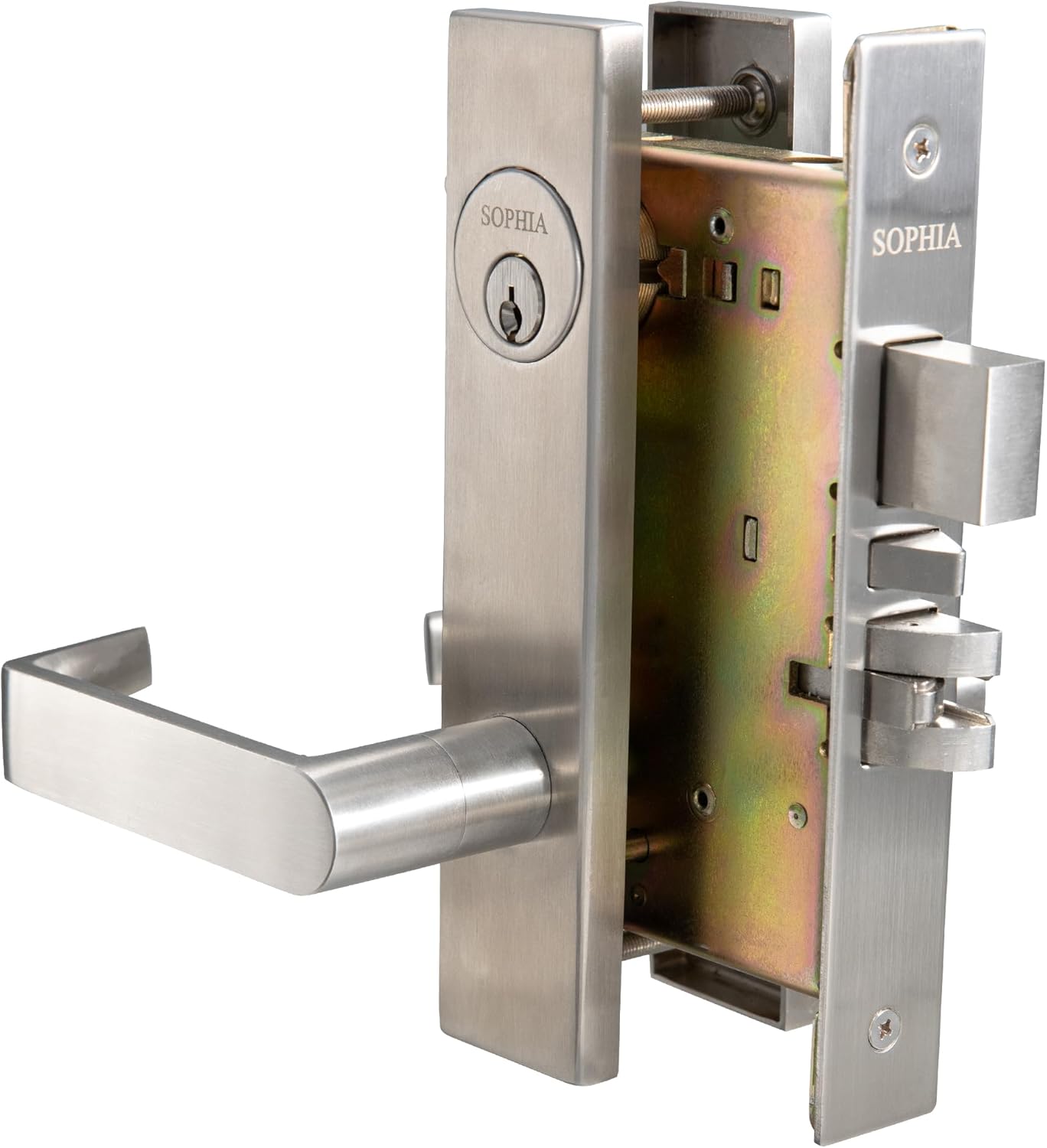

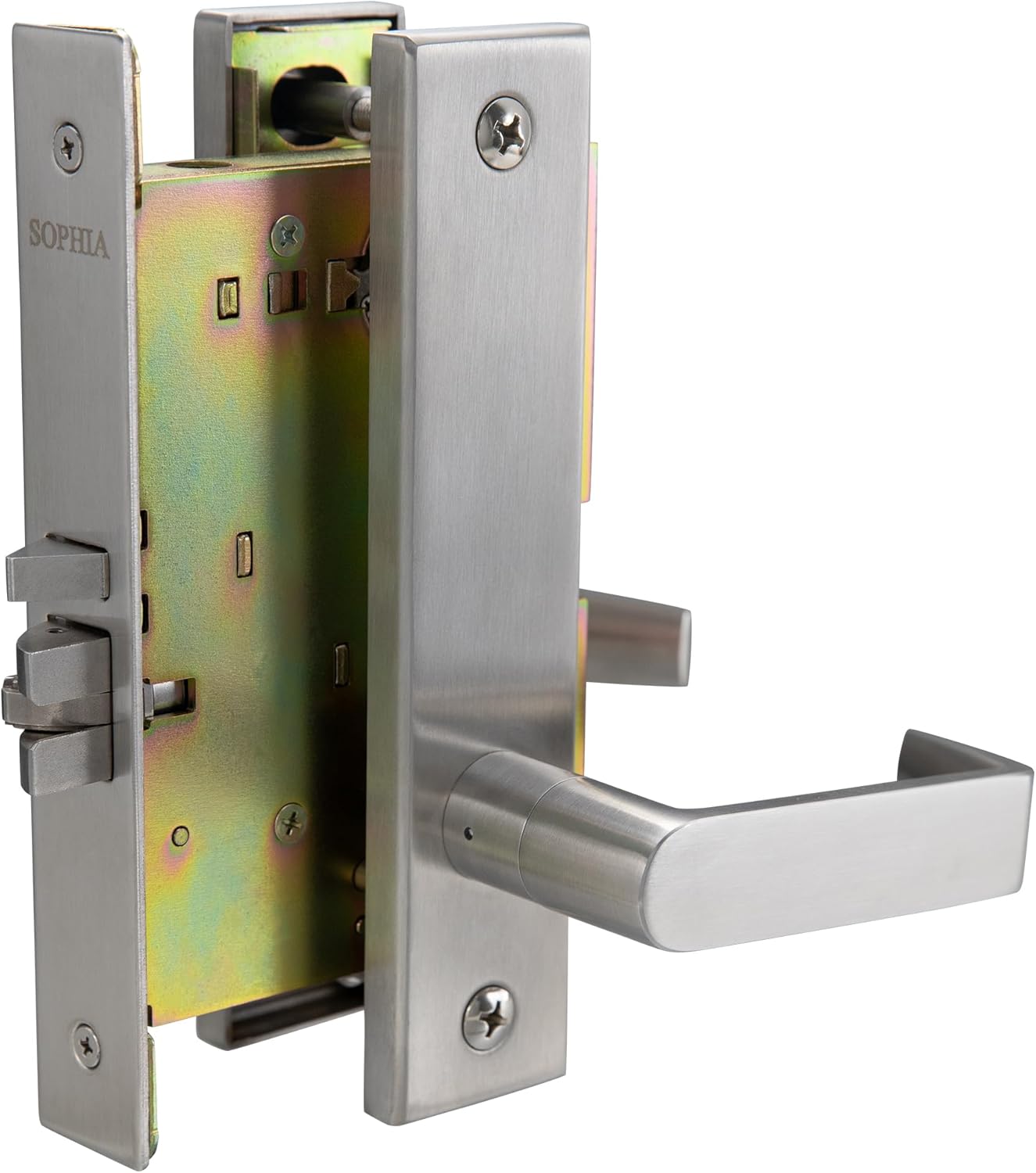

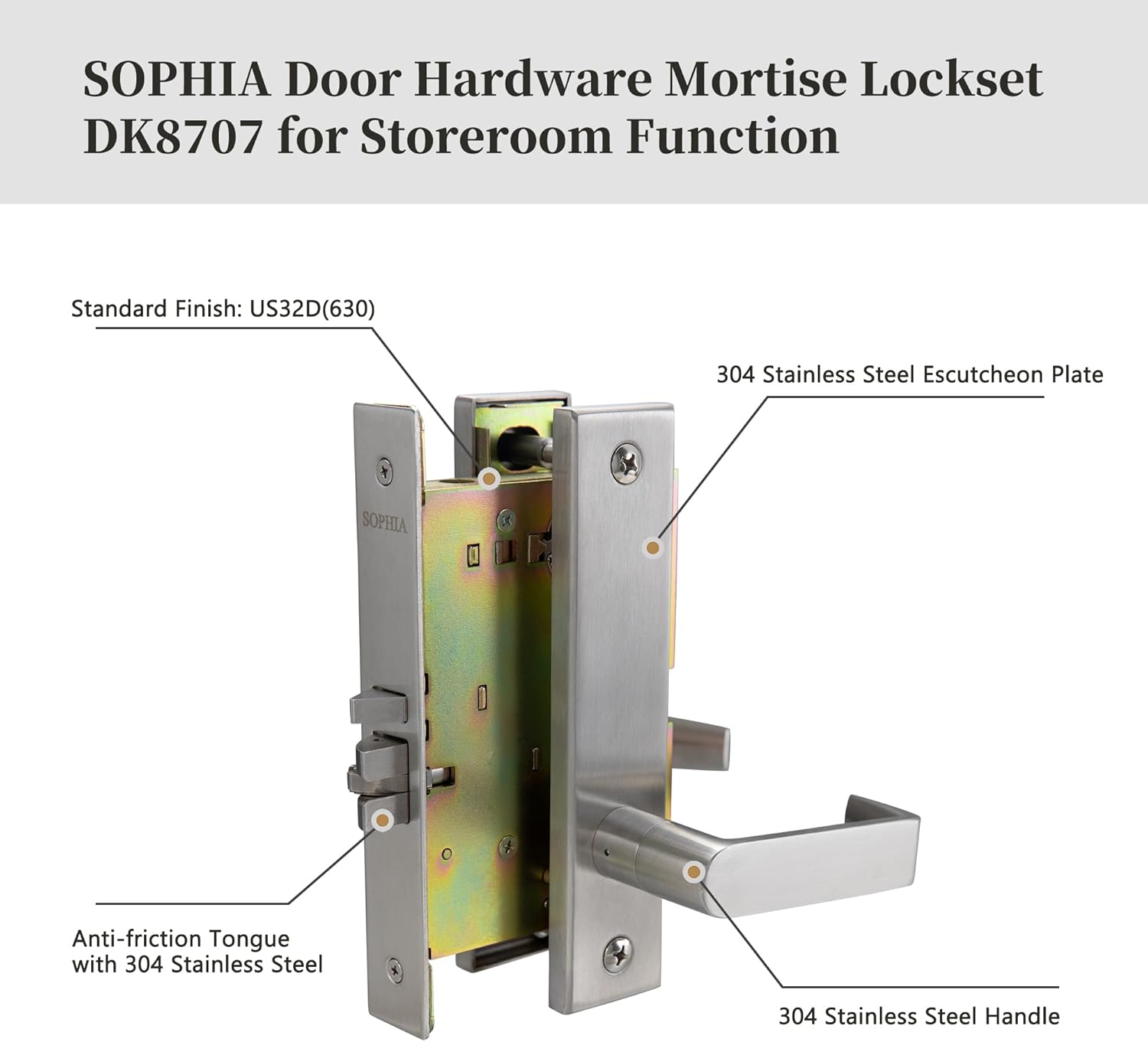

SOPHIA Commercial Heavy Duty Mortise Lockset Door Lever Lock Non-Handed Grade 1 Door Handle - Escutcheon Plate Keyed Lever Lockset, ADA, US32D Satin Chrome Finish for Storeroom Door
Product details
| Management number | 210244500 | Release Date | 2026/04/02 | List Price | $586.02 | Model Number | 210244500 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
- STOREROOM FUNCTION: Latchbolt retracted by inside lever or outside keys and outside lever always inoperative. Auxiliary latch deadlocks latchbolt when door is closed and the inside lever can be opened at any time for emergency egress.
- HIGH-QUALITY: Our commercial and residential door locks are offered in Satin chrome and aluminum finish (32D finish). Designed for 1-3/8" to 1-3/4" (35mm to 44mm) doors, they fit 1-1/2" to 2" thick doors and come standard with a 2-3/4" backset. These are non-handed commercial door levers, so our commercial door locks meet the needs of home/business owners apartment managers contractors maintenance facility managers handymen locksmiths and property managers.
- SPECIFICATIONS: This commercial and residential door lever locks come with standard ANSI 4-7/8" x 1-1/4" square corner strikes and 1-1/8" x 2-1/4" square corner faceplates. The backset is 2-3/4" (70mm), the stainless steel Roses are 3-3/8" (90mm) in diameter, and Latch bolt Stainless steel is 1/2" (12.5mm) throw standard. These specifications make our door lever handle lock fitting for 161 door prep & regular 2-1/8″ bore prep.
- CERTIFICATION: This commercial and residential heavy-duty entry key locks are ANSI/BHMA A156.13 - Grade 1 (exceeds 1,000,000 cycles) certified and UL listed. Each lever door handle with lock is made to meet ADA A117.10 accessible design standards. It is also fire rated for up to 3 hours.
- WHAT'S IN A BOX: Each box of Sophia lever door handle locks includes 1 lockset, screws and bolts, user-friendly instructions 1 ANSI strike 1 reversible latch unit and 2 pre-cut keys that are re-keyable. The commercial and residential heavy duty door locks features 304 Stainless steel, machined and threaded hubs and locking nuts to securely bolt the chassis to the door thereby preventing loosening of the lockset even with hundreds of uses per day.
| Color | Satin Chrome |
|---|---|
| Shape | Square |
| Lock Type | Mortise Lock |
| Brand Name | SOPHIA |
| Metal Type | Alloy Steel, Aluminum, Stainless Steel |
| Style Name | Escutcheon Plate/Storeroom |
| Unit Count | 1.0 Count |
| Handle Type | Lever |
| Finish Types | Chrome Finish,Satin |
| Manufacturer | SOPHIA |
| Model Number | SOPHIA-DK8707EP-Storeroom-US32D |
| Material Type | Aluminum, Stainless Steel |
| Item Type Name | Square |
| Exterior Finish | Chrome |
| Handle Material | Stainless Steel |
| Number of Items | 1 |
| Hand Orientation | Non-Handed |
| Additional Features | Lockable |
| Included Components | Door Levers, Escutcheon Plate, Fasteners, Installation Template and Instruction Manual |
| Item Dimensions L x W | 7.99"L x 4.25"W |
| Center To Center Spacing | 2.75 Inches |
| Specific Uses For Product | Professional |
| Handle Attachment Mechanism | bolt |
| Manufacturer Warranty Description | 5-year Warranty |
